Rock bolts are widely used in tunnel construction to reinforce surrounding rock masses, control ground deformation, and improve excavation stability. In conventional tunnel support systems, rock bolts work together with shotcrete, wire mesh, and other support elements to form an integrated ground reinforcement system.

However, achieving reliable rock bolt performance depends not only on the mechanical properties of the steel bar but also on the quality of installation and grouting.

One particular challenge occurs when installing rock bolts in overhead or upward-inclined boreholes, especially along the tunnel crown. During grouting, air trapped inside the borehole may prevent the grout from completely filling the annular space between the bolt and the surrounding rock. Inadequate grout filling can leave internal voids and unprotected sections of the steel bar, potentially affecting bond performance and long-term durability.

A practical approach discussed in tunnel engineering research is the use of a separate vent pipe in hollow grouted rock bolt systems. By providing an additional passage for displaced air, this arrangement helps improve air evacuation during grouting and provides a more observable indication of grout filling.

This article examines the grouting challenges associated with tunnel crown rock bolts, explains the function of a separate vent pipe, and discusses the engineering considerations involved in improving grouting quality.

Why Is Grouting Quality Important in Tunnel Rock Bolt Installation?

In tunnel construction, rock bolts are commonly installed as part of the primary support system, particularly under the New Austrian Tunneling Method (NATM).

Their main function is to reinforce the surrounding rock mass and improve its overall stability. Depending on the geological conditions and support design, rock bolts may provide reinforcement through mechanisms such as:

• Bonding between the bolt, grout, and surrounding rock.
• Restraint of relative movement between rock blocks.
• Improvement of the mechanical interaction within fractured rock masses.
• Reduction of localized deformation around the excavation.
• Integration with shotcrete and other support elements.

For fully grouted rock bolts, grout plays several important roles. It transfers load between the steel bar and the surrounding ground, helps protect the steel against corrosion, and contributes to the overall integrity of the anchoring system.

When grout does not completely fill the borehole, several potential problems may arise.

Incomplete Bonding

Air voids or unfilled sections can reduce the effective contact area between the grout and the borehole wall or bolt surface. This may affect load transfer and anchorage performance.

Reduced Corrosion Protection

Grout provides a protective environment around the steel bar. If sections remain exposed or inadequately covered, moisture and aggressive groundwater may increase the risk of corrosion.

Uncertain Installation Quality

A borehole may appear to have been successfully grouted even when internal voids remain. Without an appropriate venting and verification arrangement, it can be difficult to assess the actual filling condition.

These concerns become particularly important in tunnel crown applications, where gravity and borehole orientation can complicate the grouting process.

Common Grouting Challenges in Tunnel Crown Rock Bolts

Air Entrapment in Upward-Inclined Boreholes

When grout is injected into a horizontal or downward-inclined borehole, air can generally move toward an available outlet more easily, depending on the injection arrangement.

The situation is more complicated in upward-inclined boreholes.

In tunnel crown applications, grout is typically injected through the hollow bar or another designated injection passage. As grout enters the borehole, the air initially occupying the annular space must escape.

If the air outlet is obstructed or becomes sealed prematurely by grout, trapped air may remain inside the borehole.

This can create internal voids even when grout appears at the borehole opening.

Premature Grout Return

One potential problem with conventional arrangements is premature grout return at the borehole entrance.

When grout reaches the outer end of the borehole before the trapped air has been completely displaced, the grout may block the available air escape path.

The resulting condition can create a false indication of complete grouting.

In other words, observing grout at the borehole opening does not necessarily confirm that the entire borehole has been filled.

Limitations of Conventional Grout Stoppers

A grout stopper is commonly installed near the borehole opening to prevent grout leakage.

However, a stopper must perform two different functions:

• Restrict grout from flowing out of the borehole.
• Allow displaced air to escape during injection.

If the stopper seals the borehole too tightly without a separate venting passage, air evacuation may become difficult.

If it does not provide adequate sealing, grout may leak through the gap between the stopper and the bolt or borehole wall.

This creates a practical challenge: achieving effective grout retention while maintaining a reliable air escape route.

Difficulties in Quality Verification

The actual grout filling condition is difficult to determine through visual inspection alone.

A visible grout return at the borehole entrance may indicate that grout has reached the outlet, but it does not automatically prove that no internal voids remain.

For this reason, the grouting arrangement, injection procedure, grout properties, and quality verification method should all be considered when designing tunnel rock bolt installation procedures.

A Separate Vent Pipe for Improved Grouting

A separate vent pipe provides an additional passage for air to escape during grouting.

This arrangement was investigated in a 2009 tunnel engineering study based on trial applications in the Dabie Mountain Tunnel in China.

The system used a hollow grouted rock bolt together with a dedicated vent pipe attached to the bolt body.

Rather than relying solely on the available clearance around the grout stopper, the separate pipe provided a defined route for air evacuation.

Main Components

A vented hollow grouted rock bolt arrangement generally includes the following components:

Hollow Bolt

The hollow steel bar serves as the structural anchoring element and provides an internal passage for grout injection.

Separate Vent Pipe

A small-diameter pipe is attached to the bolt body and extends toward the outside of the borehole. It provides a passage for displaced air during grouting.

Grout Stopper

The stopper is installed near the borehole entrance to limit grout leakage and help maintain the required injection conditions.

Grouting Connector

The connector connects the hollow bolt to the grouting equipment and provides access for grout injection.

Bearing Plate and Nut

These components are installed at the exposed end of the bolt to transfer support loads and secure the anchoring assembly according to the project design.

How the Venting Process Works

The basic working principle involves separate passages for grout injection and air evacuation.

1. The hollow bolt is inserted into the prepared borehole with the vent pipe attached to its body.
2. A grout stopper is installed near the borehole entrance.
3. The grouting connector is connected to the exposed end of the hollow bolt.
4. Cement-based grout is pumped through the hollow bolt into the borehole.
5. As grout progressively fills the annular space, the displaced air escapes through the separate vent pipe.
6. The vent pipe provides an observable outlet for monitoring air discharge and subsequent grout return.
7. Grouting is stopped according to the approved project procedure and the observed return condition.

The key principle is to avoid allowing grout to seal the available air outlet before the trapped air has been displaced.

A separate venting passage can therefore help reduce the risk of air entrapment and improve the control of the grouting process.

Field Trial: Application in the Dabie Mountain Tunnel

The 2009 study, published in the Chinese journal Tunnel Construction, documented a field trial of the combined hollow grouted rock bolt arrangement in the Dabie Mountain Tunnel.

The trial focused on evaluating the construction procedure, air evacuation, grout filling, and installation efficiency.

The main test parameters reported in the paper included:

Grouting Procedure

The trial followed a sequence designed to maintain a separate air escape route throughout the injection process.

First, the borehole was drilled and cleaned using compressed air.

The vent pipe was then secured to the hollow bolt body, extending beyond the exposed end of the bolt. The bolt assembly was inserted into the borehole, and a grout stopper was installed to restrict grout leakage.

After connecting the grouting equipment, the vent pipe was kept open.

Grout was pumped through the hollow bolt. During injection, air escaped through the vent pipe. The trial reported that air discharge stopped after approximately 30 seconds, followed by the appearance of grout return after a further period of approximately 10 seconds.

These observations were used to assess the progress of borehole filling.

Transparent Tube Verification

In addition to the field installation, the research team conducted a simulated grouting test using a transparent acrylic tube.

The hollow bolt assembly was installed inside the tube, with both ends sealed. The grout was injected through the hollow bolt while the vent pipe was immersed in water so that air discharge could be observed.

During injection, bubbles were initially released through the vent pipe. After approximately 35 seconds, the bubbles stopped. Grout return was then observed through the vent pipe after a further period of approximately 10 seconds.

The researchers observed that the grout had filled the transparent tube, providing a visual demonstration of the venting arrangement.

This test helped illustrate the working principle of separate air evacuation during grouting.

It should be noted that the reported time values belong to the specific experimental arrangement and should not be treated as universal grouting parameters for other tunnel projects.

Key Advantages of a Separate Venting Arrangement

Based on the mechanism and the findings reported in the study, several potential advantages can be identified.

Improved Air Evacuation

A dedicated vent pipe provides a defined route for displaced air to leave the borehole during grout injection.

This is particularly relevant to upward-inclined and overhead rock bolt installations, where air entrapment can be more difficult to manage.

Better Control of Grout Filling

Separating the grout injection passage from the air evacuation passage helps reduce the possibility of premature blockage at the borehole entrance.

The observed air discharge and grout return also provide useful process information for site personnel.

More Observable Grouting Conditions

Compared with arrangements that rely only on grout appearance at the borehole opening, a separate vent pipe provides another observable indication of the grouting process.

However, this should be regarded as a process-monitoring method rather than definitive proof of complete grout filling.

Practical Construction Procedure

The study reported that the installation procedure was relatively straightforward and compatible with conventional hollow grouted rock bolt construction practices.

The additional operation mainly involved attaching the vent pipe to the bolt body.

According to the trial, each bolt required approximately 35–45 seconds for grouting. The additional preparation time for attaching the vent pipe was approximately 1–2 minutes per bolt.

These figures represent the conditions of the reported trial, rather than guaranteed production rates for other projects.

Important Engineering Considerations

Although a separate vent pipe can help address air entrapment, successful grouting depends on more than the presence of a venting component.

Several factors should be considered during project planning and installation.

Borehole Orientation

The inclination and direction of the borehole affect how air moves as grout enters the annular space.

Tunnel crown applications should receive particular attention because upward-inclined holes may present greater air evacuation challenges.

Grout Consistency and Flowability

Grout properties influence injection pressure, flow behavior, and the ability of the material to fill the available space.

The water-cement ratio, cement type, admixtures, and mixing procedure should be selected according to project requirements.

A mixture that is too thick may create difficulties during injection, while excessive fluidity may increase leakage or segregation risks.

Vent Pipe Position and Continuity

The vent pipe must remain open and properly connected to the intended air escape route throughout the grouting process.

Blockages, disconnections, or incorrect positioning can affect its effectiveness.

Grouting Pressure and Equipment

The grouting pump should provide a suitable and controllable injection pressure.

Excessive pressure may cause grout leakage, damage components, or create undesirable effects in weak surrounding ground.

The appropriate pressure and injection procedure must be determined based on the ground conditions, bolt system, and project specifications.

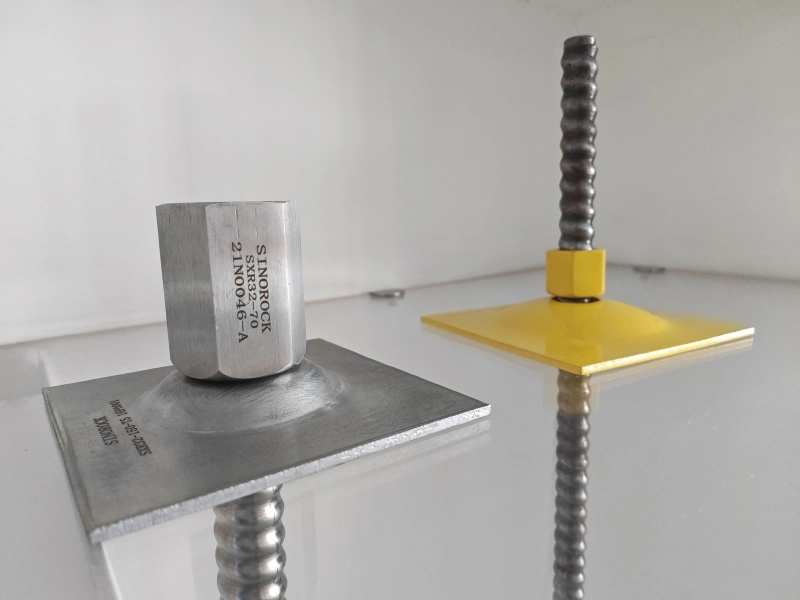

Corrosion Protection

The grouted length and the exposed anchoring components should be considered separately when assessing corrosion protection.

Areas around the bearing plate, nut, and bolt head may require additional protective measures depending on the groundwater conditions, service life, and project durability requirements.

A separate vent pipe improves the air evacuation arrangement but does not independently provide corrosion protection.

Quality Inspection and Verification

Grout return from a vent pipe can provide an indication that grout has reached the vent outlet. Nevertheless, it should not be considered conclusive evidence that the entire borehole is free of voids.

For critical applications, project-specific inspection and verification methods may include:

• Monitoring grout pressure and injection volume.
• Recording grout return conditions.
• Inspecting representative trial installations.
• Conducting pull-out or proof-load tests where required by the design.
• Applying suitable non-destructive or other verification methods when specified.

The acceptance criteria should follow the applicable project specifications and engineering standards.

Hollow Grouted Rock Bolts and Self-Drilling Anchor Bolts: Understanding the Difference

Hollow grouted rock bolts and self-drilling anchor bolts are both used in ground reinforcement, but they are not interchangeable terms.

Understanding their differences is important when selecting a suitable anchoring system for tunnel construction.

Hollow Grouted Rock Bolts

A conventional hollow grouted rock bolt is generally installed in a pre-drilled borehole.

The hollow bar serves as a grout injection passage, allowing grout to be delivered into the annular space around the bolt.

Depending on the system design, separate vent pipes and other accessories may be incorporated to improve the grouting process.

Self-Drilling Anchor Bolts

A Self-Drilling Anchor (SDA) system combines drilling and anchoring functions into one installation system.

Its hollow threaded bar acts as both the drill rod and the permanent reinforcement element. A sacrificial drill bit is attached to the front end, while grout is injected through the hollow bar during or after drilling, depending on the installation procedure.

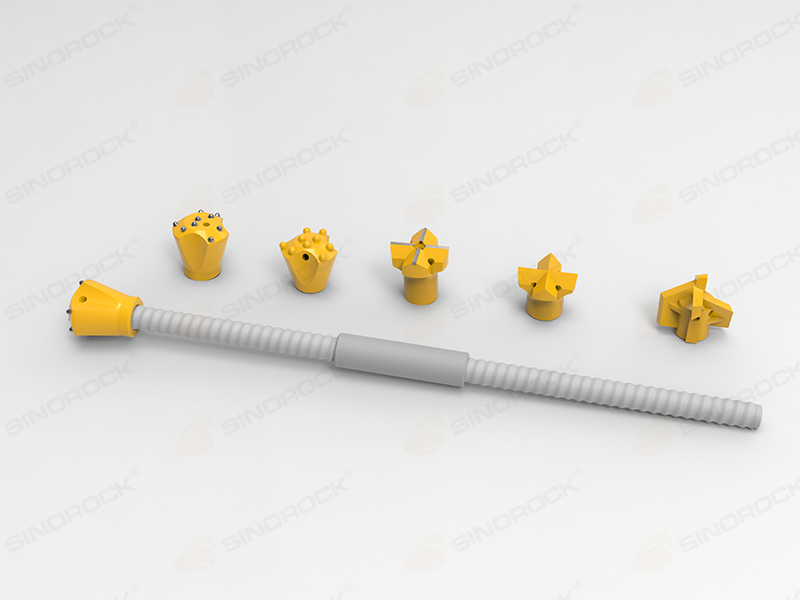

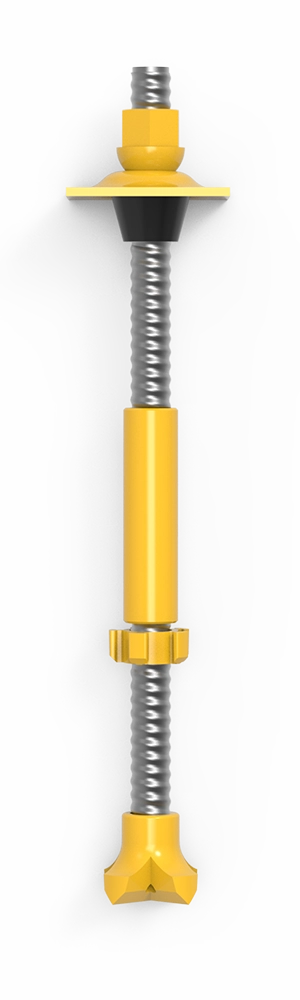

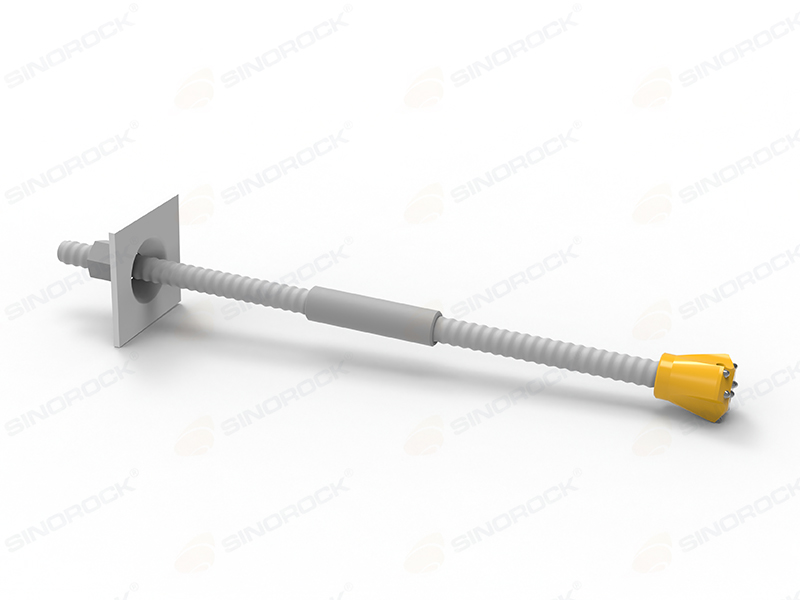

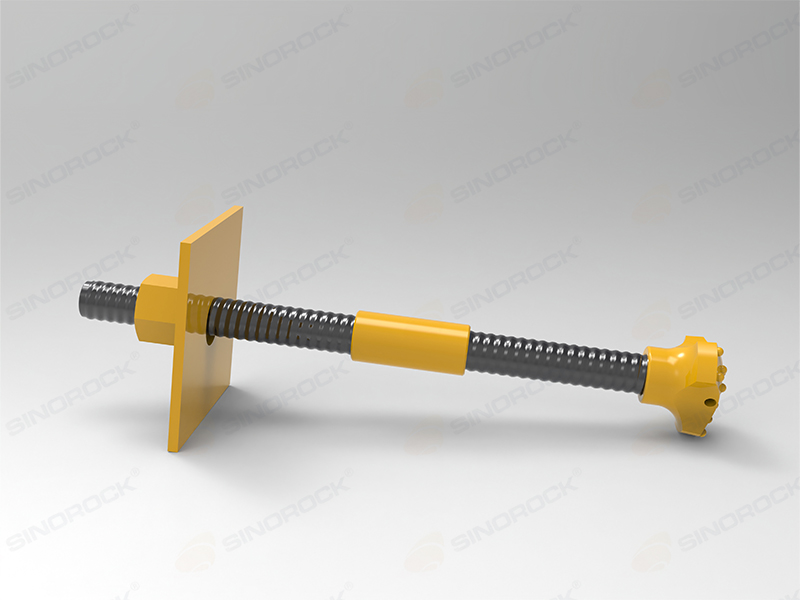

A typical SDA system includes:

• Hollow threaded anchor bar.
• Sacrificial drill bit.
• Coupler.
• Nut.
• Bearing plate.
• Centralizer.
• Grouting accessories, where required.

Self-drilling anchor bolts are particularly useful in fractured rock, loose ground, and geological conditions where conventional boreholes may be difficult to maintain.

Selecting the Appropriate System

The selection between conventional hollow grouted rock bolts and self-drilling anchor bolts depends on geological conditions, borehole stability, installation access, support requirements, and construction methodology.

A separate vent pipe arrangement addresses a specific grouting challenge. It should not be confused with the drilling and anchoring functions of an SDA system.

Conclusion

Grouting quality is an essential factor in the performance and durability of tunnel rock bolt support systems.

In upward-inclined and overhead boreholes, trapped air can prevent complete grout filling and create uncertainty about the actual installation condition.

A separate vent pipe provides an additional passage for air evacuation during grouting and offers a more observable indication of the filling process.

The field trial documented in the 2009 study demonstrated the practical application of this arrangement in a tunnel construction environment. Its findings highlight the importance of considering air evacuation, grout flow, borehole orientation, and quality verification when designing and implementing grouted rock bolt systems.

For modern tunnel projects, the key consideration is not simply selecting a hollow bolt with an injection passage, but ensuring that the complete installation system is suitable for the ground conditions and provides a controlled, verifiable grouting process.

At Sinorock, we focus on the development and manufacturing of self-drilling anchor bolt systems and hollow bar anchoring solutions for ground reinforcement applications. Understanding the interaction between anchoring components, grouting procedures, and geological conditions is an important part of supporting reliable tunnel and underground construction projects.

Selecting the right drill bit diameter for different self-drilling anchor bar sizes is essential for efficient drilling, proper grouting, and reliable ground reinforcement. The optimal diameter varies depending on the anchor bar specification, drill bit type, and geological conditions. In this guide, Sinorock explains the recommended and acceptable drill bit diameter ranges for different anchor bar sizes, covering carbide drill bits, steel drill bits, and clay bits, to help engineers and contractors make informed decisions for their projects.

Why Is Drill Bit Diameter Important for Self-Drilling Anchor Bars?

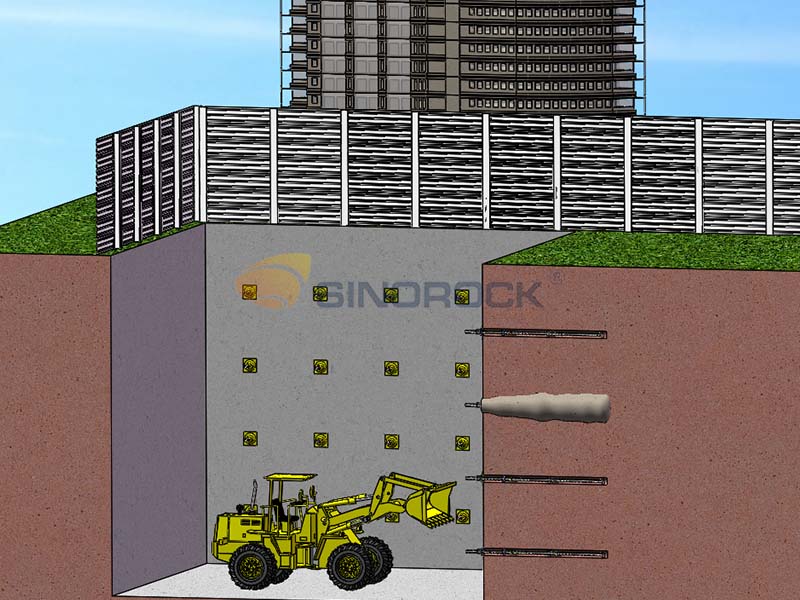

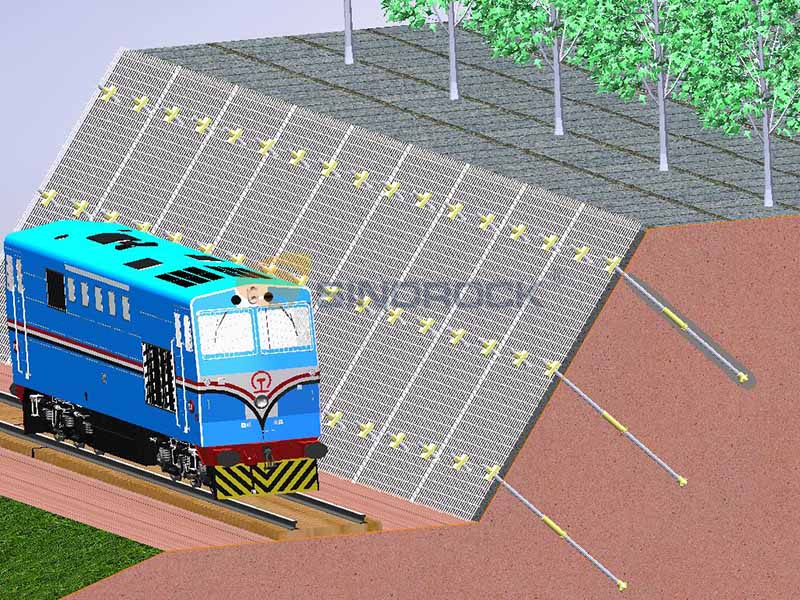

Self-drilling anchor bars integrate drilling, grouting, and reinforcement functions into a single system. They are widely used in slope stabilization, tunnel support, foundation reinforcement, and micropile applications.

Selecting the appropriate drill bit diameter is essential for achieving efficient drilling, suitable borehole dimensions, and sufficient space for grout flow. An undersized drill bit may result in insufficient annular clearance, while an oversized drill bit may increase drilling resistance, material consumption, and construction costs.

The ideal drill bit diameter depends on several factors, including anchor bar size, drill bit type, ground conditions, borehole requirements, and grouting methods.

Drill Bit Diameter Compatibility Guidelines

Self-drilling anchor bars can be paired with different drill bit types according to the geological conditions and project requirements.

• Carbide drill bits: Suitable for various rock formations, with selection depending on rock hardness, abrasiveness, and drilling requirements.
• Steel drill bits: Used in suitable ground conditions, with compatible diameters selected according to the anchor bar specification and drilling requirements.
• Clay bits: Designed for appropriate soft-ground conditions, where cutting performance, spoil removal, and borehole stability are important considerations.

For each anchor bar specification, the optimal drill bit diameter range should be the first reference for selection. The acceptable range provides additional options when project conditions require adjustments.

These ranges are intended as preliminary selection guidance. Final compatibility should be confirmed based on the ground conditions, drilling equipment, connection design, and project specifications.

Recommended Drill Bit Diameters for Different Anchor Bar Sizes

The following tables provide recommended and acceptable drill bit diameter ranges for different self-drilling anchor bar specifications. All dimensions are in millimeters (mm).

Carbide Drill Bit Diameter Compatibility

Steel Drill Bit Diameter Compatibility

Clay Bit Diameter Compatibility

When selecting a drill bit, engineers should consider both the anchor bar specification and the drill bit type. The same anchor bar may require different drill bit diameters depending on the drilling method and ground conditions.

How to Select the Right Drill Bit Diameter

Identify the anchor bar specification

Determine the exact anchor bar model, such as R25. R32. R51. T76. or T103. Each specification has its own dimensional and compatibility requirements.

Evaluate the ground conditions

Consider rock hardness, abrasiveness, soil composition, fractured formations, and groundwater conditions to determine the most suitable drill bit type.

Refer to the optimal diameter range

Use the recommended range for the selected anchor bar and drill bit type as the primary selection reference. If the project requires a different borehole diameter, evaluate whether an alternative size is suitable.

Verify system compatibility

Check the connection between the drill bit and anchor bar, as well as drilling equipment capacity, spoil removal, grout clearance, and the specified borehole diameter.

For unusual geological conditions or non-standard configurations, consult the supplier before finalizing the selection.

What Happens If the Drill Bit Diameter Is Incorrect?

An unsuitable drill bit diameter may affect drilling performance and construction quality.

• Diameter too small: May reduce annular clearance and restrict the space available for grout flow.
• Diameter too large: May increase drilling resistance, bit wear, and material consumption, and may affect borehole stability under certain ground conditions.
• Incorrect drill bit type: May reduce drilling efficiency or cause difficulties with spoil removal.
• Incompatible connections: A suitable diameter alone does not guarantee compatibility between the drill bit and anchor bar.

The actual impact depends on geological conditions, drilling parameters, equipment configuration, and grouting methods.

Conclusion

Choosing the right drill bit diameter for a self-drilling anchor bar requires more than matching nominal sizes. The anchor bar specification, drill bit type, geological conditions, borehole requirements, and grouting process must all be considered.

Using the optimal diameter range as the primary reference can help engineers narrow down suitable options and improve drilling efficiency. Final selection should always be verified against project requirements and system compatibility.

Sinorock can assist with evaluating self-drilling anchor bar and drill bit combinations based on project specifications, ground conditions, and construction requirements.

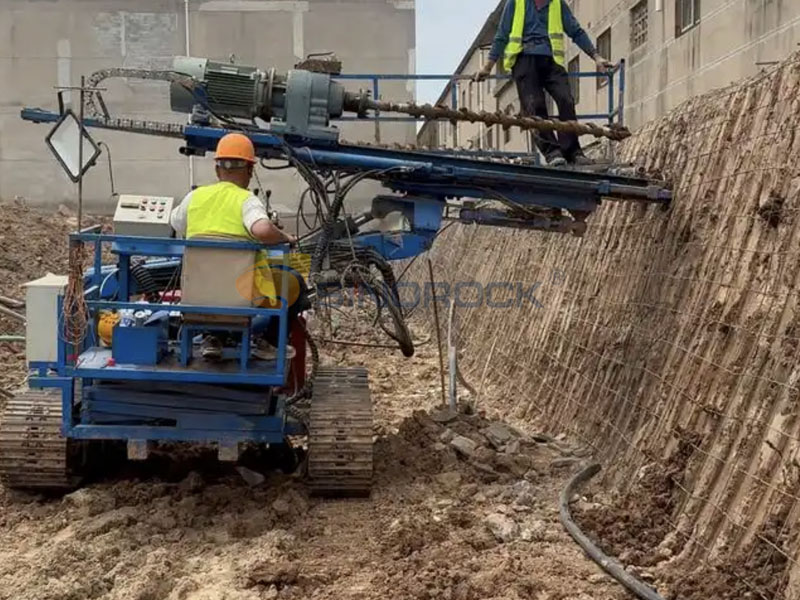

An SDA bolt integrates drilling, reinforcement, and grouting into a single system. Instead of drilling a borehole first and installing a separate reinforcing element afterward, the hollow threaded anchor bar itself functions as the drill string during installation and remains in the ground as the permanent reinforcement element.

This integrated approach can simplify installation, reduce the number of separate operations, and provide greater adaptability to challenging ground conditions. However, understanding how an SDA system works requires more than simply knowing what the abbreviation stands for. The bar, drill bit, coupler, anchorage components, flushing method, grout, and surrounding ground all contribute to the performance of the completed system.

This guide explains what an SDA bolt is, how it works, its main components and types, common installation methods, and why simultaneous drilling and grouting can be important in difficult ground conditions.

What Does SDA Stand For?

SDA stands for Self-Drilling Anchor.

An SDA bolt is generally based on a hollow threaded steel bar. A compatible sacrificial drill bit is attached to the leading end of the bar, allowing the bar to function as the drill string during installation.

The hollow center has two important functions:

• Flushing during drilling — air, water, foam, or grout can be introduced through the hollow bar depending on the installation method and ground conditions.
• Grouting — cementitious grout can subsequently be injected through the bar to fill the annular space and form the bond between the steel reinforcement and surrounding ground.

Understanding what “SDA” stands for provides the basic definition, but it does not fully explain how the system differs from conventional anchors. To understand its engineering characteristics, it is useful to look more closely at what an SDA bolt actually is and how its hollow-bar design functions during installation.

What Is an SDA Bolt?

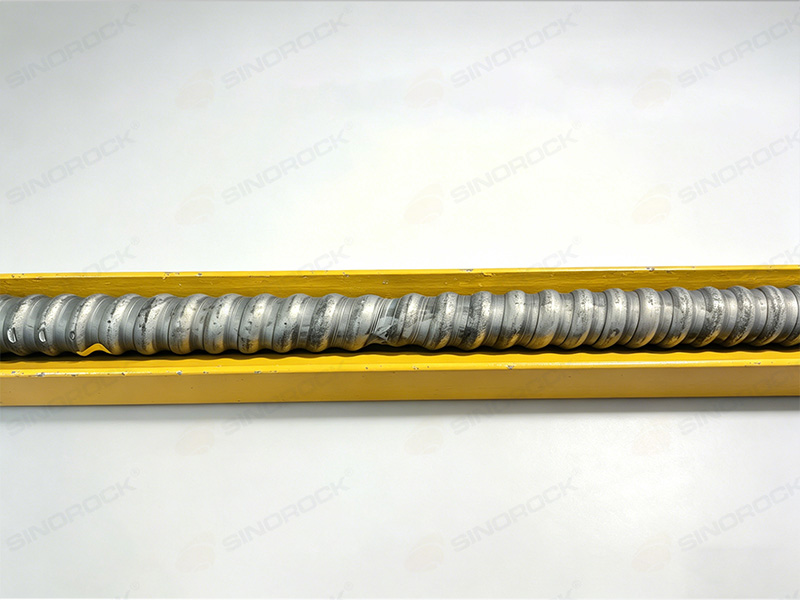

A Self-Drilling Anchor (SDA) Bolt is a hollow, continuously threaded steel anchor designed to perform drilling, reinforcement, and grouting as an integrated installation system. Unlike conventional anchoring methods, where a borehole may be drilled first and reinforcement installed afterward, an SDA bolt is installed together with a sacrificial drill bit and can remain in the ground as the permanent reinforcing element.

The hollow bar provides a passage for flushing media during drilling and for grout during installation. Once installed and grouted, the steel bar, grout, and surrounding ground work together to form a ground-reinforcement system.

The concept is particularly relevant where borehole stability, difficult ground conditions, restricted access, or the need to integrate drilling and grouting into fewer operations are important considerations.

An SDA bolt is therefore not simply a hollow steel bar with a drill bit. It is a complete anchoring system in which multiple components work together during drilling, grouting, and load transfer. Each component has a specific role in the installation and performance of the finished anchor.

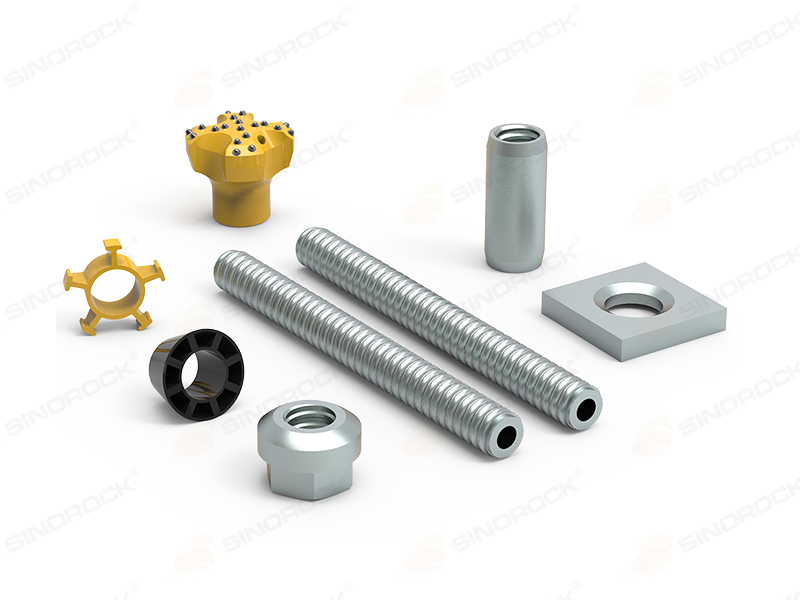

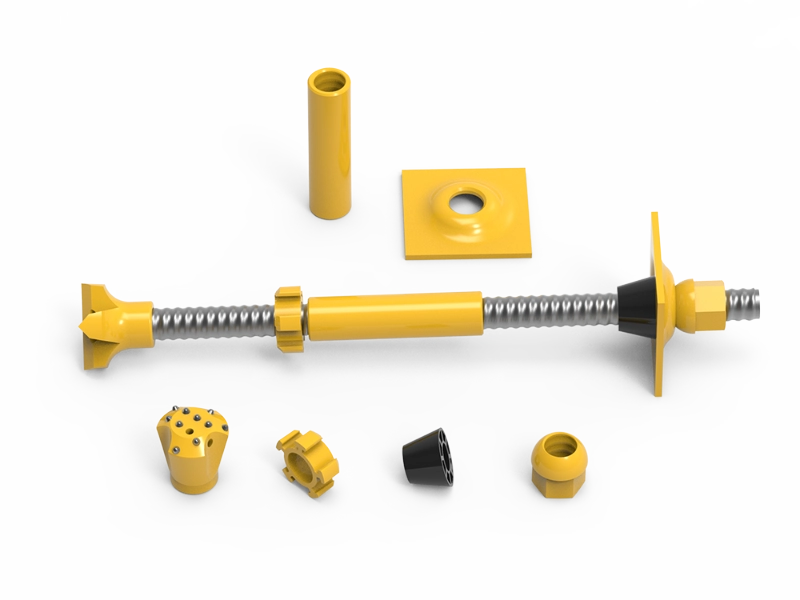

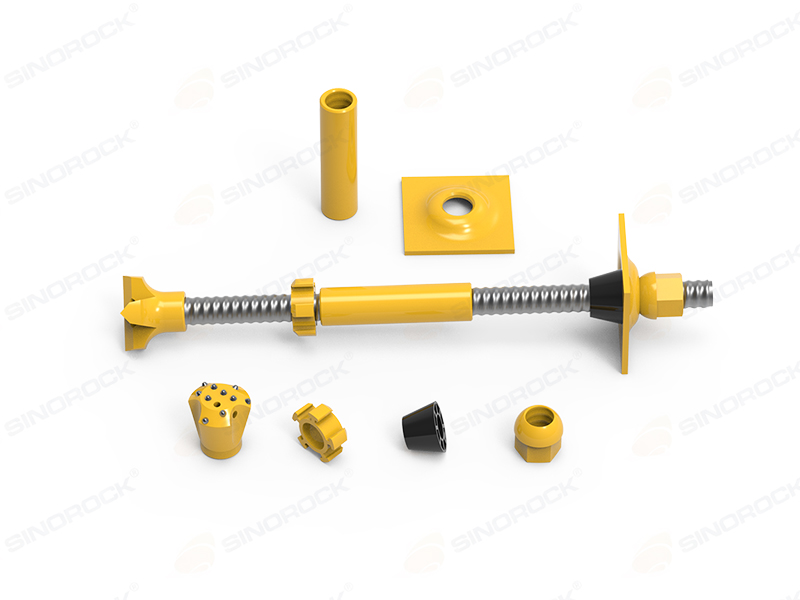

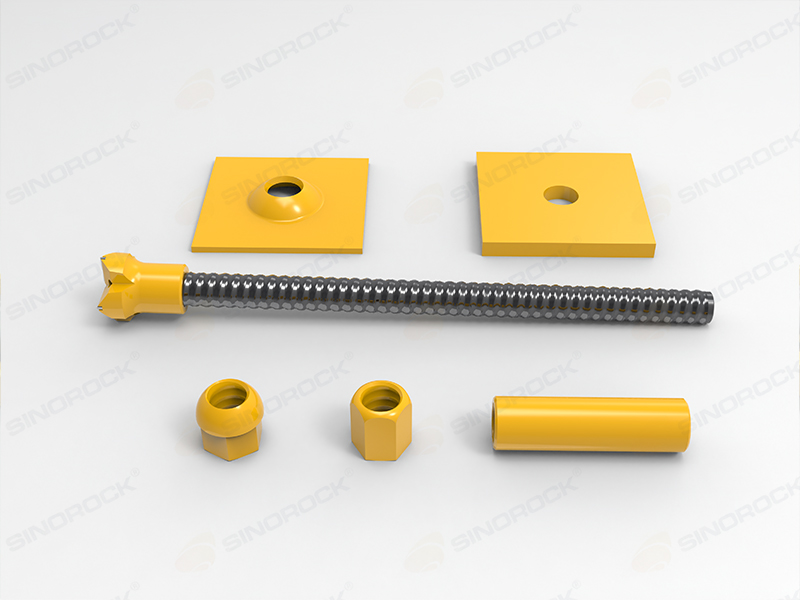

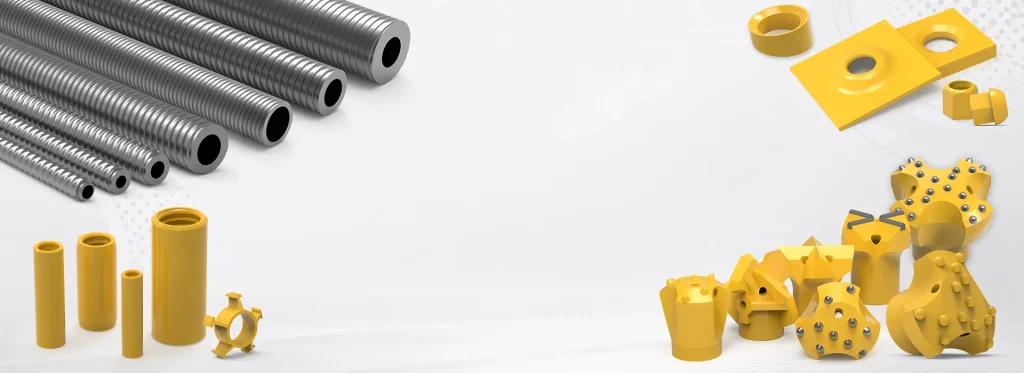

SDA Bolt Components

The performance of an SDA system depends on the compatibility of its individual components. Although the hollow anchor bar is the primary structural element, the drill bit, coupler, bearing plate, nut, and centraliser all contribute to installation efficiency, load transfer, and grout coverage.

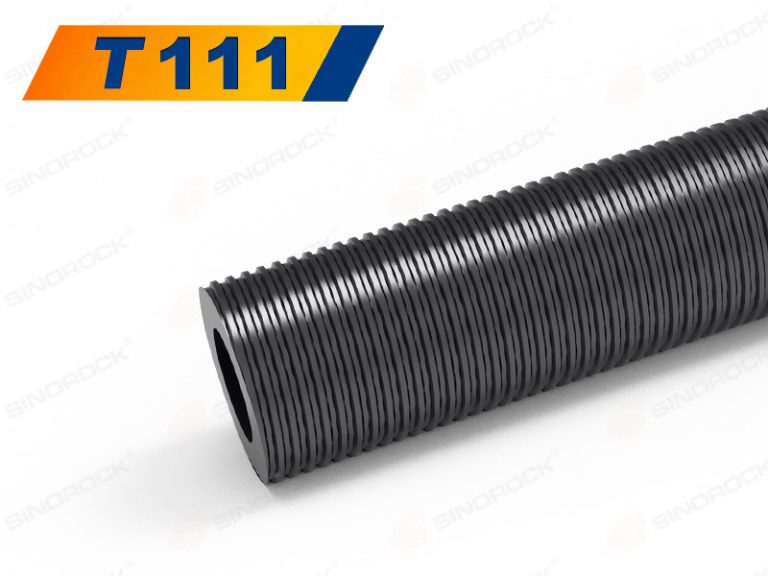

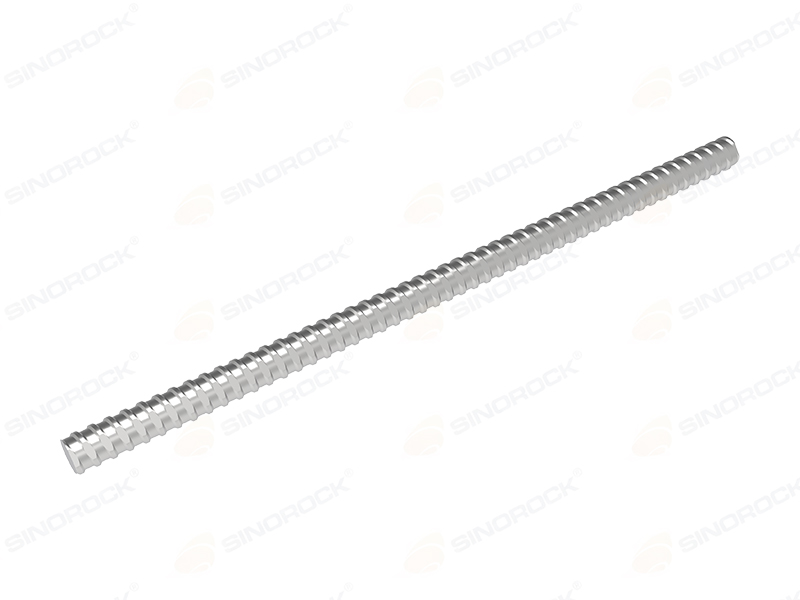

Hollow Anchor Bar

The hollow anchor bar is the primary structural component of an SDA system. It combines a continuous external thread, a hollow internal passage, a structural steel section, and connection capability

The continuous thread allows the bar to be cut or extended according to project requirements while maintaining compatibility with couplers and anchorage components.

While the hollow anchor bar provides the structural backbone of the system, it cannot perform the drilling operation by itself. A compatible drill bit is required to penetrate the ground and create the drilled hole.

Drill Bit

The drill bit is attached to the end of the SDA bar and performs the drilling operation.

Different drill-bit configurations can be selected according to the geological formation. The available designs include various cross, three-blade, button, concave, and clay-bit configurations.

The drill bit is generally selected based on factors such as:

• Soil or rock formation
• Ground hardness
• Presence of gravel
• Fractured rock
• Drilling method
• Required borehole diameter
• Flushing method

For many SDA applications, the drill bit is sacrificial and remains underground together with the anchor bar.

Because SDA bars can be installed to considerable depths, multiple bar sections may be required during drilling. Extension couplers provide the mechanical connection needed to continue the drilling operation without replacing the installed bar with a separate reinforcement element.

Extension Coupler

Extension couplers connect individual SDA bars together. They allow the system to achieve the required anchor or pile length without requiring a single bar manufactured to the full installation depth.

The coupler must be compatible with the corresponding SDA thread and designed to maintain the required mechanical connection.

Once the required anchor length has been achieved and the bar has been grouted, the load must be transferred from the steel reinforcement to the surrounding structure or facing. This is the role of the anchorage components.

Bearing Plate and Nut

The bearing plate distributes the load from the anchor head to the surrounding structure or facing system.

The nut secures the SDA bar against the bearing plate and completes the anchorage assembly.

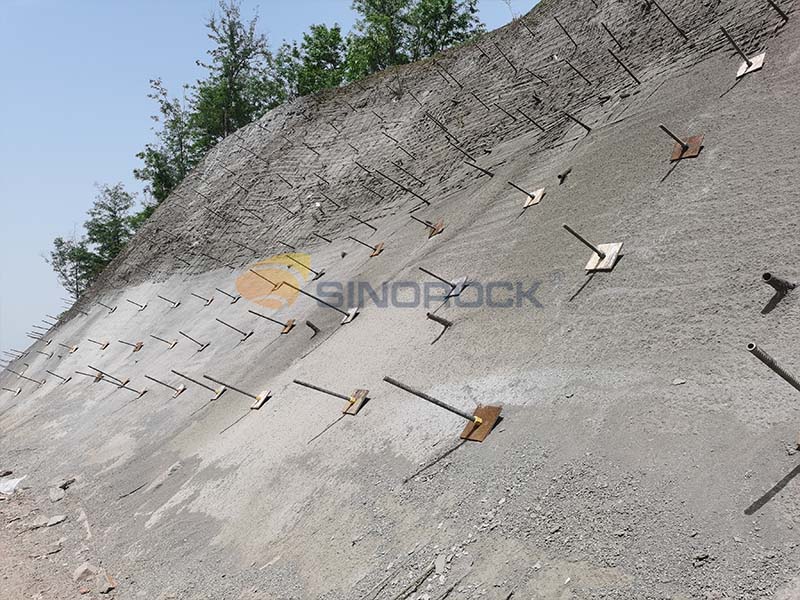

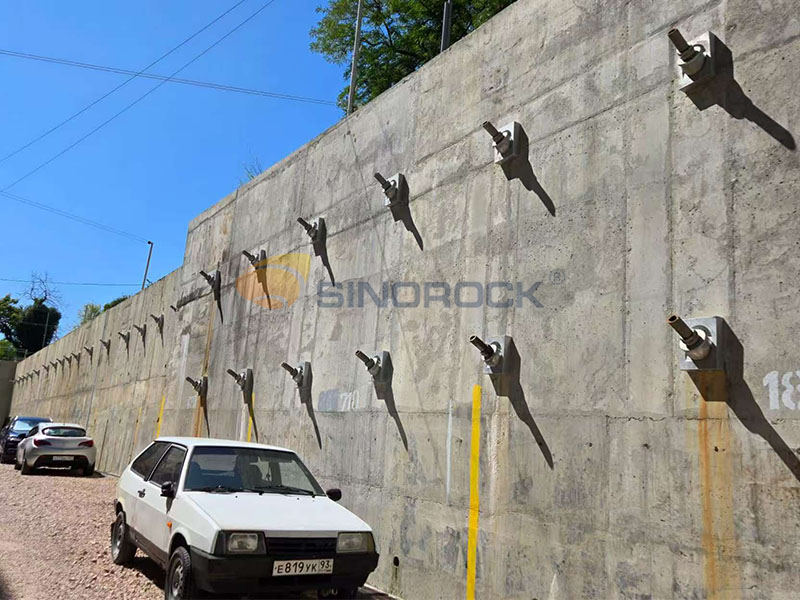

These components are particularly important in soil and rock nailing, slope stabilization, and other applications where the anchor head must transfer forces to a facing or structural element.

In addition to the anchorage components, maintaining an appropriate position of the bar within the drilled hole can influence grout coverage and the resulting steel-to-grout interface. A centraliser can therefore be used where required by the system or installation design.

Centraliser

A centraliser helps maintain the position of the SDA bar within the drilled hole and supports more consistent grout coverage around the bar.

With the main SDA components identified, the next consideration is the selection of the anchor bar itself. SDA systems are available in different diameters, thread configurations, and steel grades, allowing the system to be selected according to the required mechanical and installation performance.

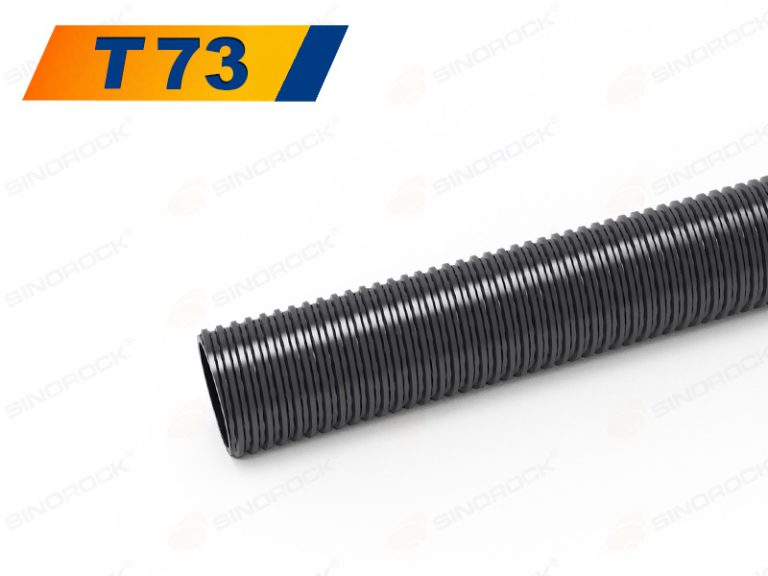

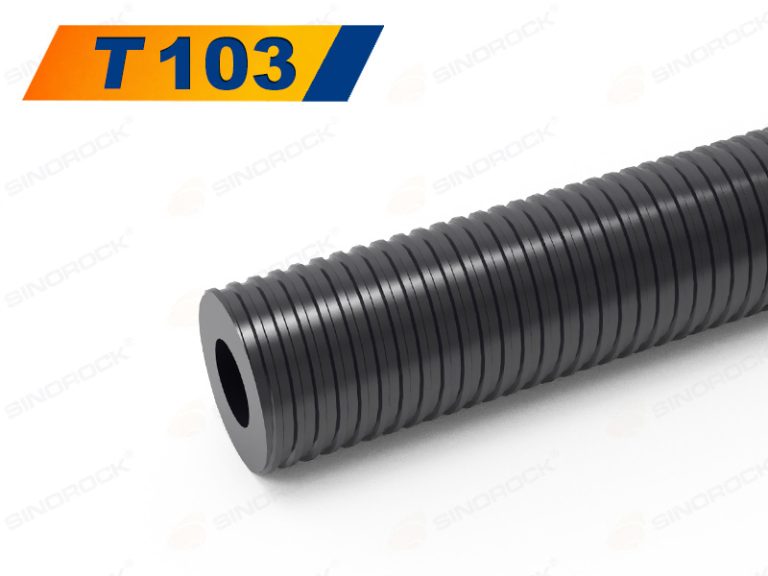

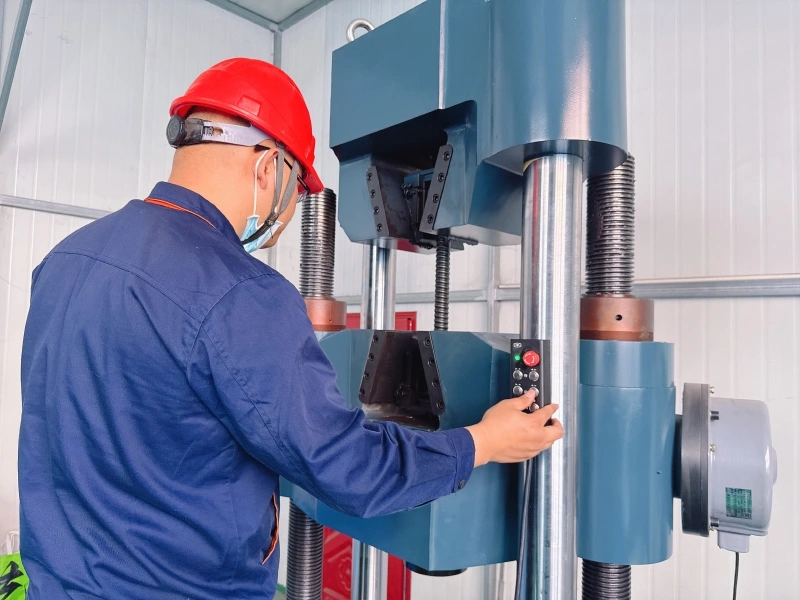

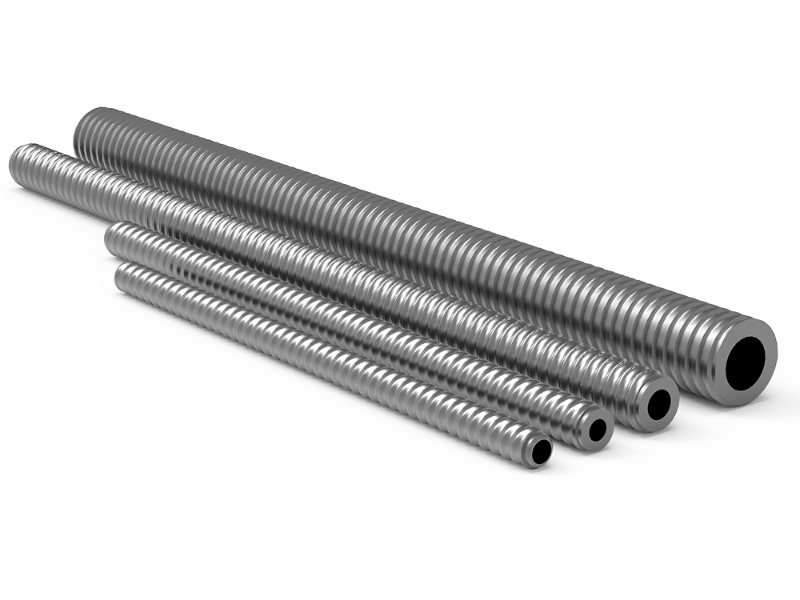

SDA Anchor Bar Types and Mechanical Properties

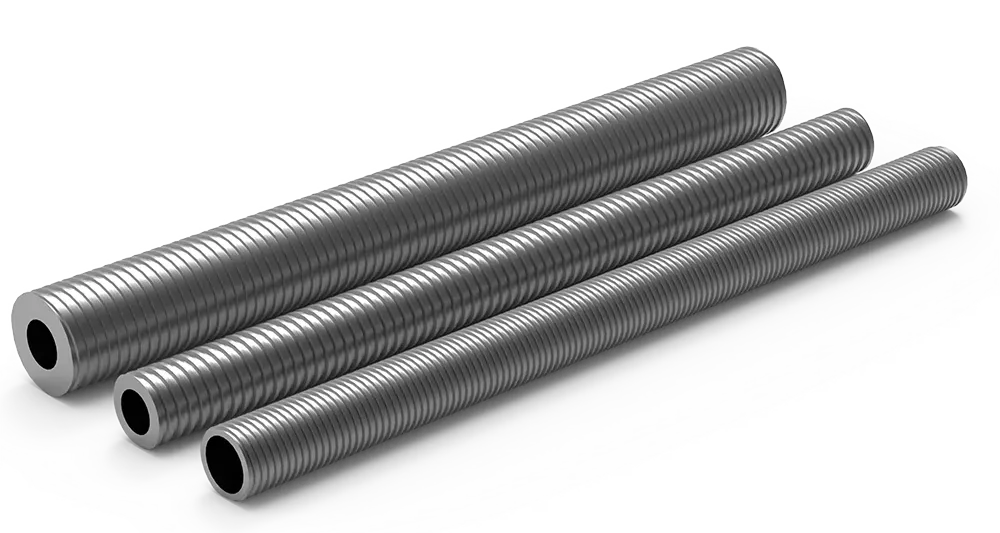

SDA bars are not manufactured as a single universal configuration. Different bar sizes, thread profiles, and steel grades are available to accommodate different structural loads, drilling conditions, and project requirements. Among the commonly used configurations are R-type and T-type SDA bars.

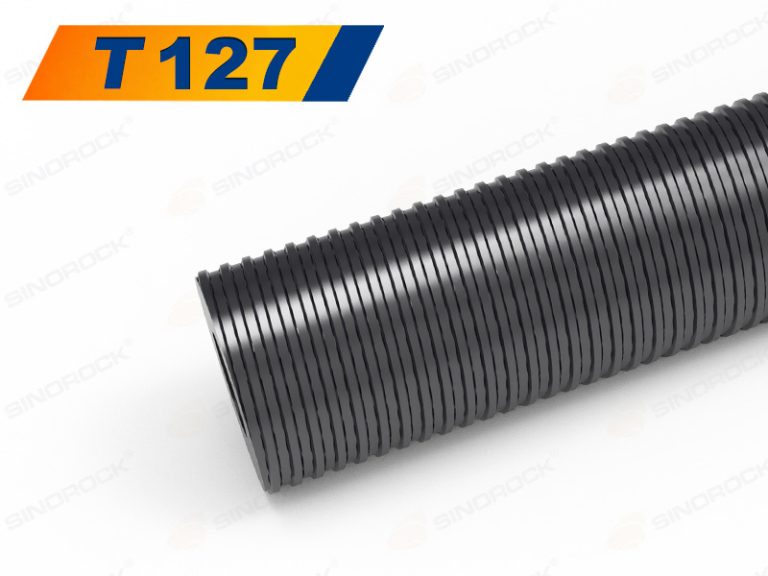

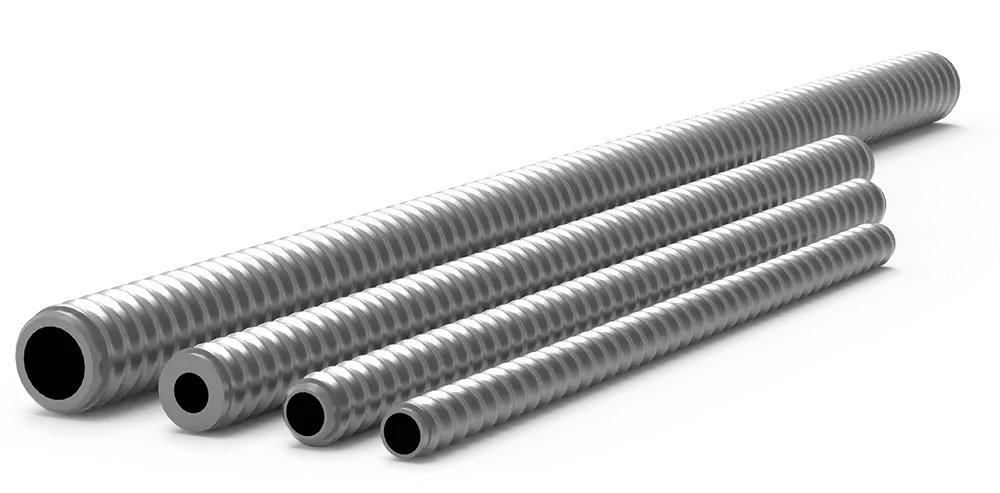

R-Type SDA Bars

Typical R-thread SDA sizes shown for ground-engineering applications include:
